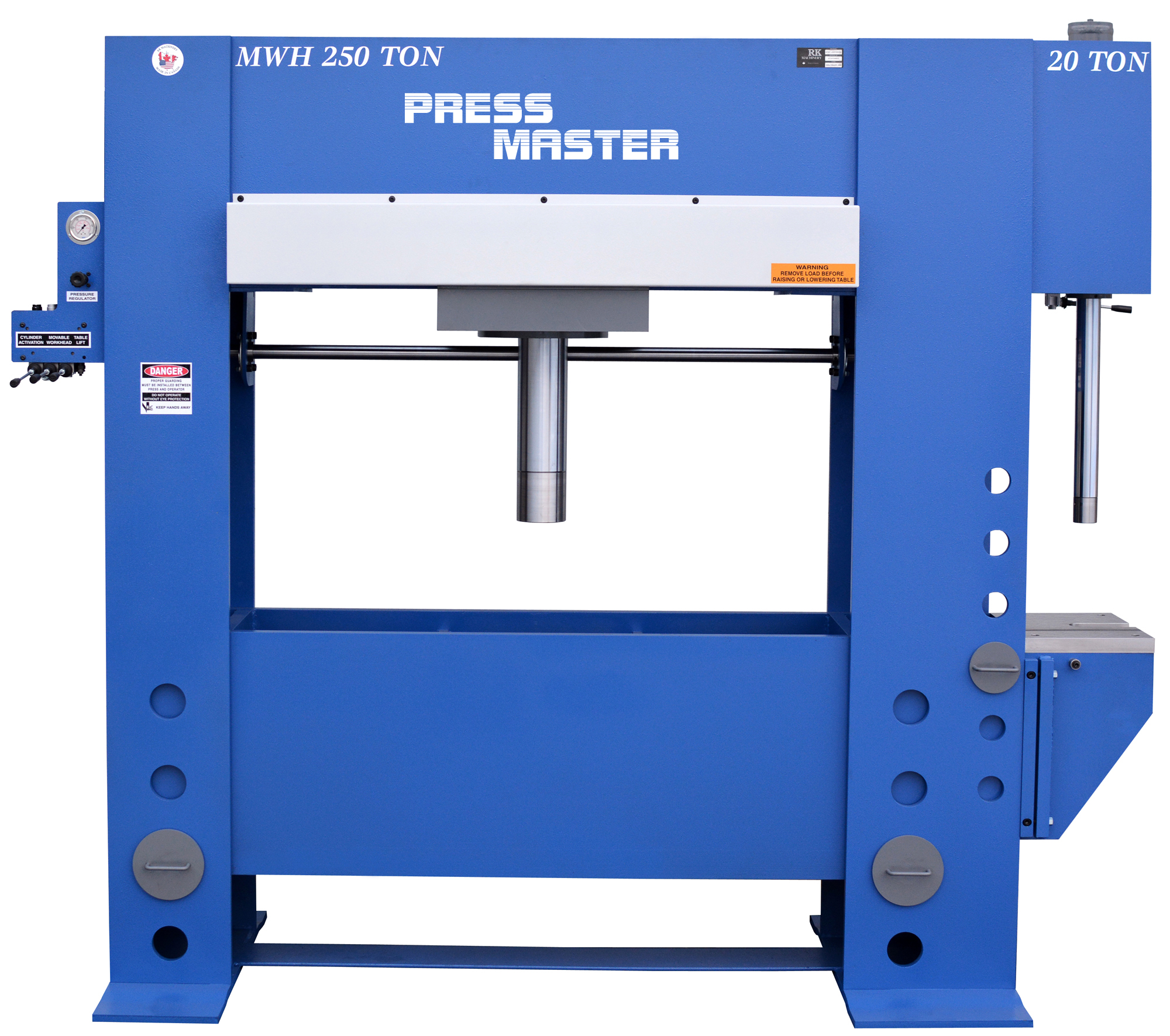

250 ton H-frame press in combination with 20 ton Broach press.
20 inch stroke suitable for broaching & other applications.
Powered movable workhead for off-center work allows operator to position the cylinder from left to right with the touch of a lever.
Work tables are independent of each other.
All powered 3 axis are fingertip controlled.
Pressure regulator to limit the ram pressure.
Pressure regulator to limit the ram pressure up to 20 tons.
Speed control limits the maximum speed of ram travel, allowing operator to select the proper speed for the task.
Cylinder activation is fingertip controlled, the more the hand lever is engaged the more
the ram movement is accelerated. This allows the operator to control the proper speed for the task.
Cylinder stroke to 20 inches.
Removeable work table.
Open sides to facilitate work on long pieces.
Flat ram nose can be easily changed to allow the user to adapt the press to a specific job.
Hydraulic power packconveniently located up and out of the way.
All hydraulic and mechanical parts are standard in the industry, and available throughout North America.
Self-locking table design eliminates lateral movement.
Standard feature on all H Frame Press models.
The more pressure that you apply to the workpiece, the moreridgid the table and frame become.
The head consists of three 2.000”hardened pins per leg. These pins are positioned into the leg and head then welded in place and ground even. When the press is painted they are not even visible.
Do the math
Tensile strength = AREA x PSI x No. of Pins.
3.14 x D2 ÷ 4 x 100,000 lbs. Per SQ. IN. x 12 Pins = 3,768,000 lbs.
1,884 Tons.
Press Plate & V Blocks (Option)
TABLE & MATCHED PAIR OF V BlOCKS ARE PRECISION MACHINED.
