Cylinder activation is fingertip controlled, the more the hand lever is engaged the more
the ram movement is accelerated. This allows the operator to control the proper speed for the task.
Not shown
Front safety guard for operator protection (optional).
Safety guard can be removed within a few seconds if necessary.
Electric / Hydraulic operation provides smooth, consistent pressing action.
Quality motor, low speed.
Low speed pump - quiet, dependable operation.
High capacity 10 GAL. hydraulic oil reservoir.
Power pack conveniently placed out of the way on all models.
All hydraulic and mechanical parts are standard in the industry, and available throughout North America.
Low pressure hydraulic system maintains lower oil temperatures, resulting in higher efficiency and safer operation.
We use large bore cylinders averaging 3,800 P.S.I. maximum pressure throughout our complete line of H Frame Presses. Most other manufactures use small bore cylinders
at 700 bar equal to 10,152 P.S.I. operating pressure.
At RK Machinery operator safety is our number one concern.

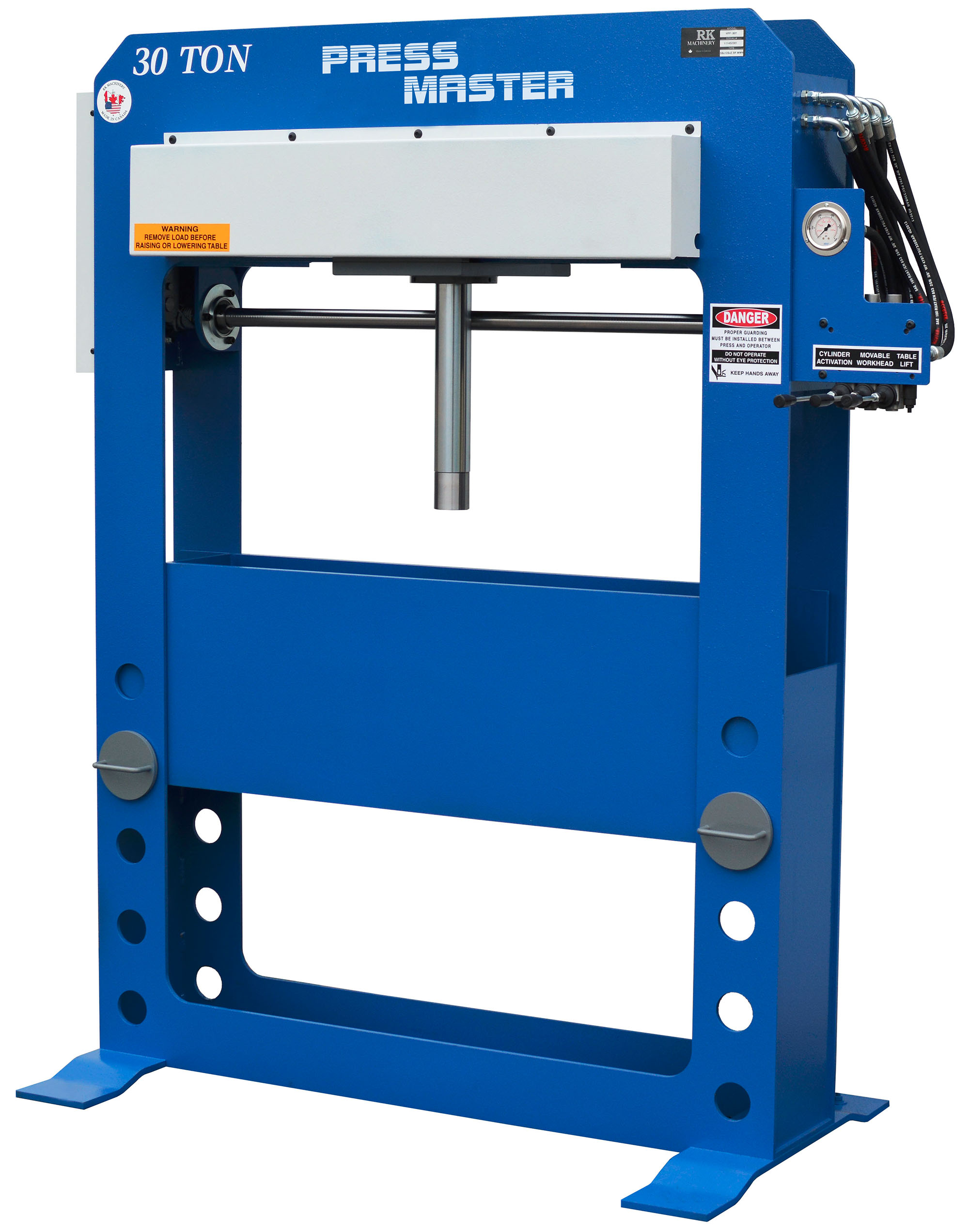

Powered movable workhead for off-center work allows operator to position the cylinder from left to right with the touch of a lever.
Hydraulic power-lift for vertical displacement of table.
Cylinder activation is fingertip controlled, the more the hand lever is engaged the more the ram movement is accelerated. This allows the operator to control the proper speed for the task.
Self-locking table design eliminates lateral movement. Standard feature on all H Frame Press models.
The more pressure that you apply to the workpiece, the more rigid the table and frame become.
OPTIONAL SAFETY KIT
Operation of the safety kit:
When any of the four guards are opened, the press will automatically go to jog mode "low pressure", unless the operator turns the key to the “on” position which will enable the operator to use the press at full pressure with the guards open.
OPTIONAL SAFETY GUARDS
Are avilable for all H Frame Presses.
Press Plate & V Blocks (Option)
TABLE & MATCHED PAIR OF V BlOCKS ARE PRECISION MACHINED.
Adjustable stroke control c/w foot pedal-electric solenoid valve, speed control and electric control panel (optional).
Flat ram nose can be easily changed to allow the user to adapt the press to a specific job.
Cylinder activation is fingertip controlled, the more the hand lever is engaged the more
the ram movement is accelerated. This allows the operator to control the proper speed for the task.
Not shown
Front safety guard for operator protection (optional).
Safety guard can be removed within a few seconds if necessary.
