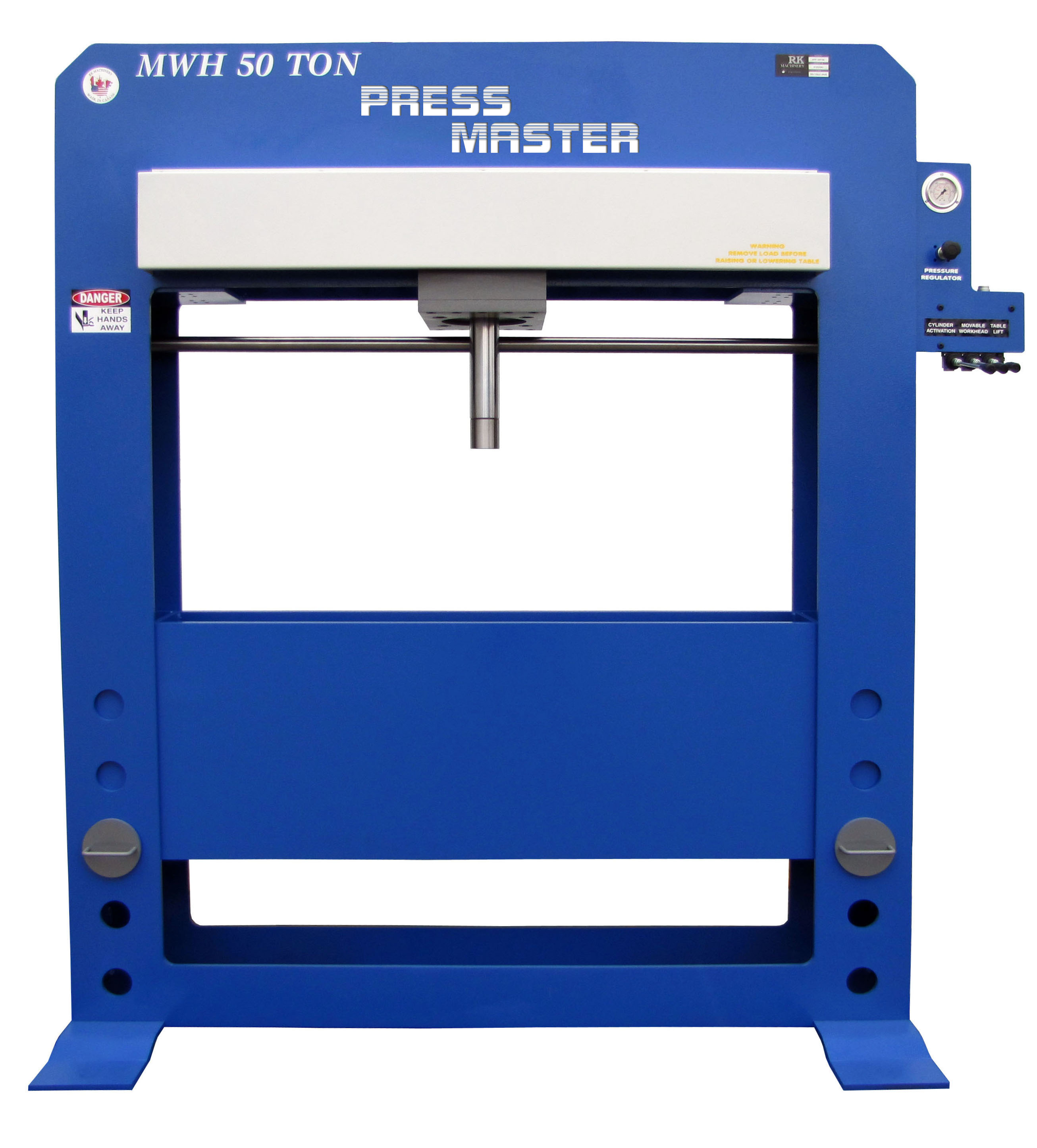

H Frame press with full
powered 3 axis control.
Superior ease of use and workmanship sets it apart as thebest product offering in its class.
Powered moveable workhead for off-center work allows operator to position the cylinder from left to right with the touch of a lever.
Cylinder activation is fingertip controlled, the more the hand lever is engaged the more the ram movement is accelerated. This allows the operator to control the proper speed for the task.
Front safety guard for operator protection (optional). Not shown.
All powered 3 axis are fingertip controlled.
Pressure regulator to limit the ram pressure.
All hydraulic and mechanical parts are standard in the industry, and available throughout North America.
Self-locking table design eliminates lateral movement.
Standard feature on all H Frame Press models.
The more pressure that you apply to the workpiece, the more rigidthe table and frame become.
Foot pedal-electric solenoid valve for hands-free operation, c/w electric control panel (optional).
Open sides to facilitate work on long pieces.
Flat ram nose can be easily changed to allow the user to adapt the press to a specific job.
Press Plate & V Blocks (Option)
TABLE & MATCHED PAIR OF V BlOCKS ARE PRECISION MACHINED.
