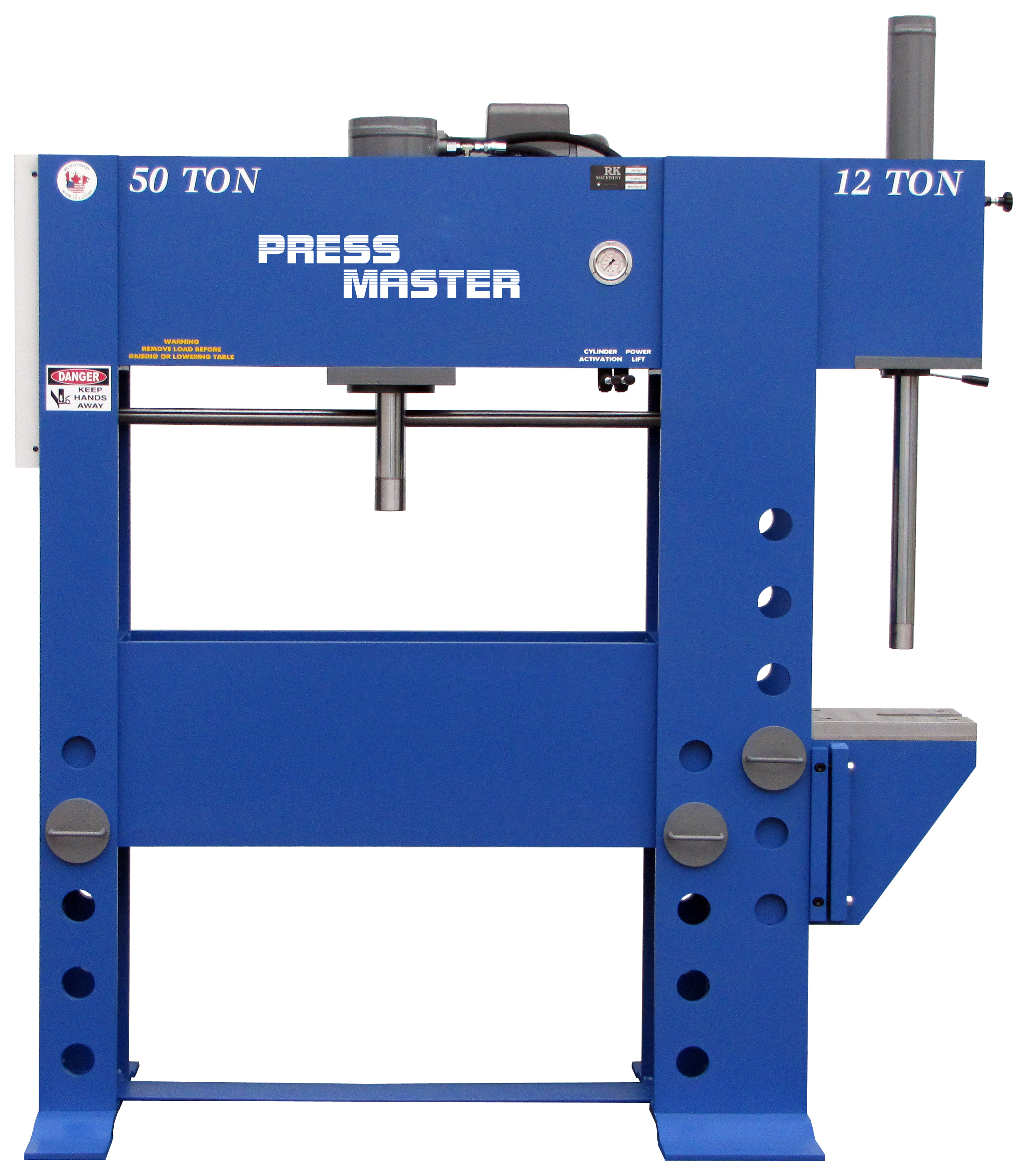

50 ton H-frame press in combination with 12 ton Broach press.

20 inch stroke suitable forbroaching & other applications.

Work tables are independent of each other.

All hydraulic and mechanical parts are standard in the industry, and available throughout North America.

Pressure regulator to limit the ram pressure up to 12 tons.

Speed control limits the maximum speed of ram travel, allowing operator to select the proper speed for the task.

Cylinder activation is fingertip controlled, the more the hand lever is engaged the more
the ram movement is accelerated. This allows the operator to control the proper speed for the task.

Cylinder stroke to 20 inches.

Hydraulic power packconveniently located up and out of the way.

All hydraulic and mechanical parts are standard in the industry, and available throughout North America.

Removeable work table.

Cylinder activation is fingertip controlled, the more the hand lever is engaged the more the ram movement is accelerated. This allows the operator to control the proper speed for the task.

Hydraulic power-lift for vertical displacement of table.

Double-acting cylinder permits pulling as well as pressing ram action.

Self-locking table design eliminates lateral movement.
Standard feature on all H Frame Press models.

The more pressure that you apply to the workpiece, the more ridgid the table and frame become.

Adjustable stroke control c/w foot pedal-electric solenoid valve and electric control panel (optional).

Press Plate & V Blocks (Option)
TABLE & MATCHED PAIR OF V BlOCKS ARE PRECISION MACHINED.
