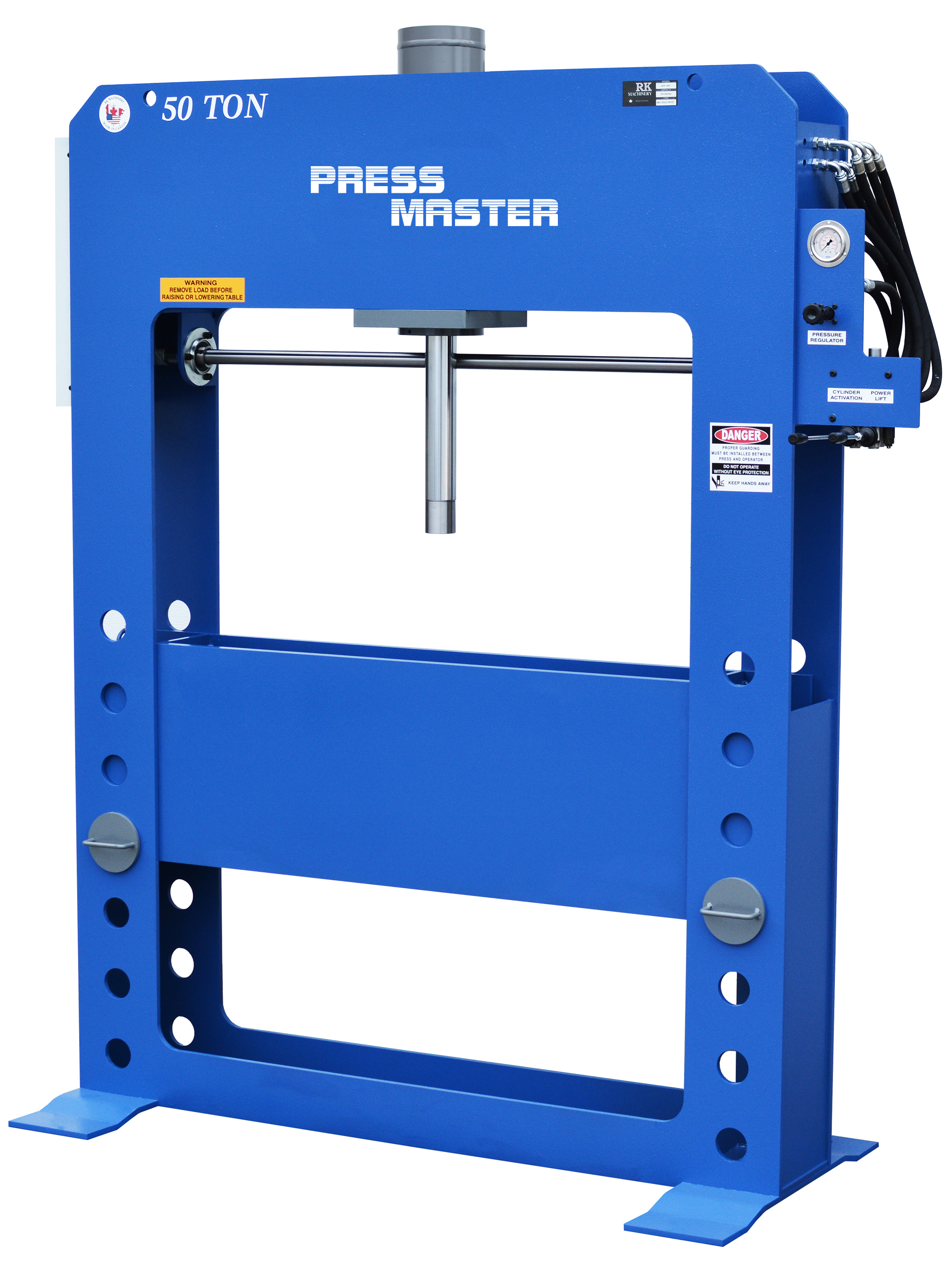

Cylinder activation is fingertip controlled, the more the hand lever is engaged the more
the ram movement is accelerated. This allows the operator to control the proper speed for the task.

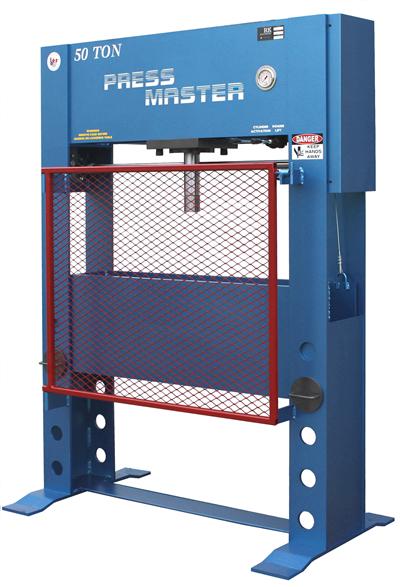

Front safety guard for operator protection (optional).

Safety guard can be removedwithin a few seconds if necessary.

The head consists of three 2.000” hardened pins per leg. These pins are positioned into the leg and head then welded in place and ground even. When the press is painted they are not even visible.

Do the math
Tensile strength = AREA x PSI x No. of Pins.
3.14 x D² ÷ 4 x 100,000 lbs. Per SQ. IN. x 12 Pins = 3,768,000 lbs.
                       1,884 Tons.

Electric / Hydraulic operation provides smooth, consistent pressing action.

Quality Baldor motor, low speed.

Low speed pump - quiet, dependable operation.

High capacity 10 GAL. hydraulic oil reservoir.

Power pack conveniently placed out of way on all models.

All hydraulic and mechanical parts are standard in the industry, and available throughout North America.

Adjustable stroke control c/w foot pedal-electric solenoid valve, speed control and electric control panel (optional).

Press Plate & V Blocks (Option)
TABLE & MATCHED PAIR OF V BlOCKS ARE PRECISION MACHINED.
