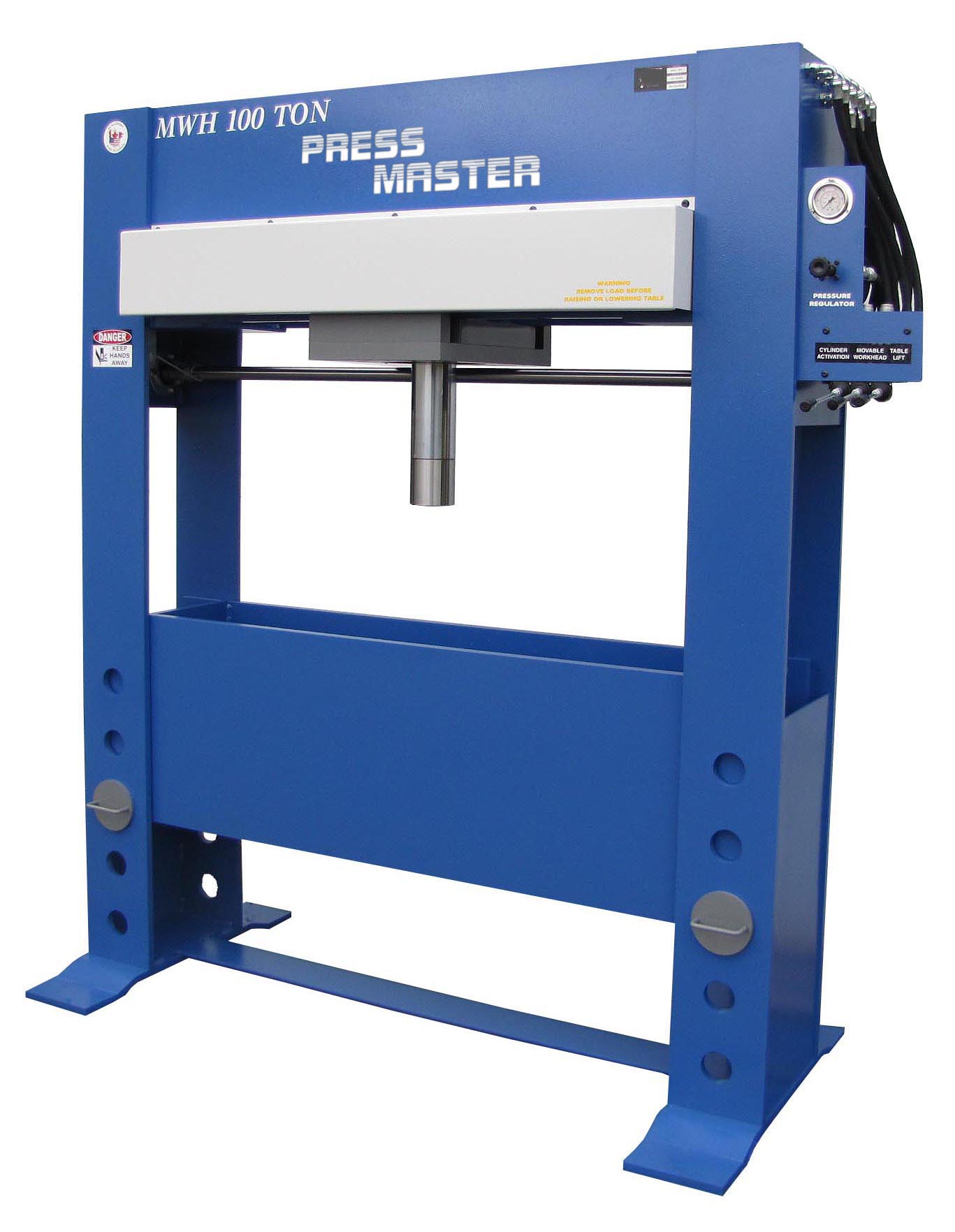

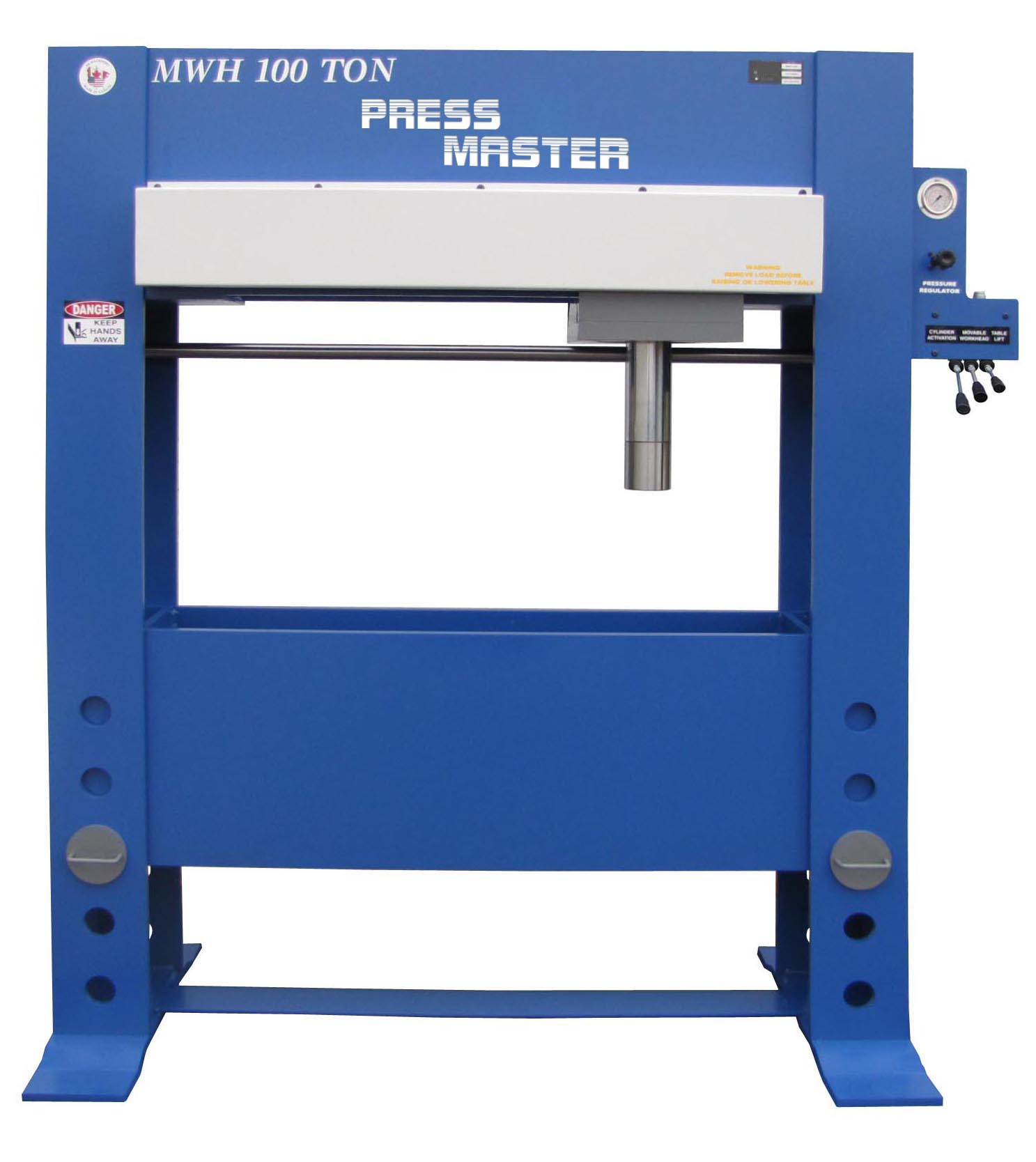

H Frame press with full
powered 3 axis control.

Superior ease of use and workmanship sets it apart as the best product offering in its class.

All powered 3 axis are fingertip controlled.

Pressure regulator to limit the ram pressure.

All hydraulic and mechanical parts are standard in the industry, and available throughout North America.

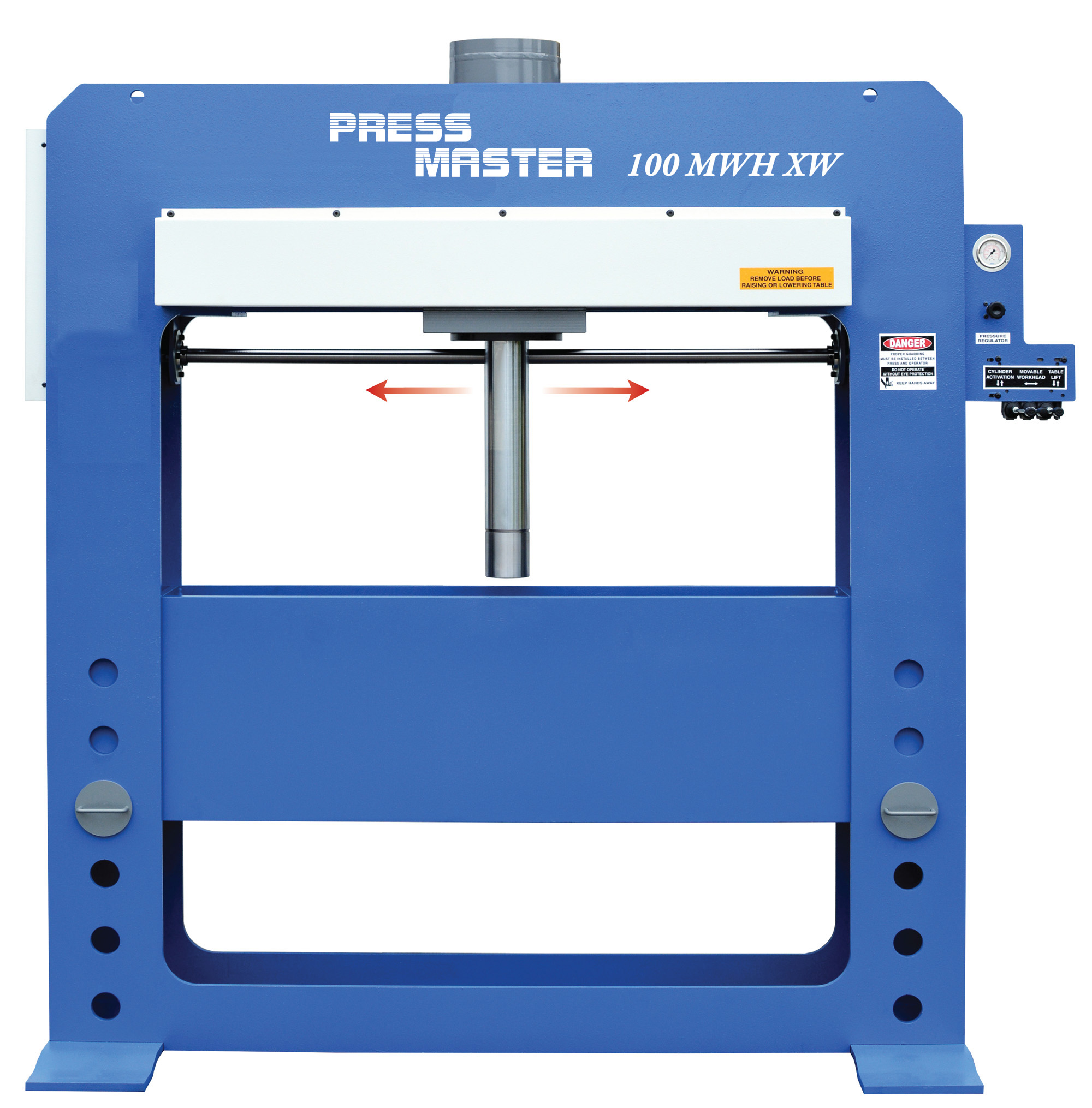

Powered moveable workhead for off-center work allows operator to position the cylinder from left to right with the touch of a lever.

Cylinder activation is fingertip controlled, the more the hand lever is engaged the more the ram movement is accelerated. This allows the operator to control the proper speed for the task.

Front safety guard for operator protection (optional). Not shown.

Low pressure hydraulic system maintains lower oil temperatures, resulting in higher efficiency and safer operation.

We use large bore cylinders averaging 3,800 P.S.I. maximum pressure throughout our complete line of H Frame Presses. Most other manufactures use small bore cylinders
at 700 bar equal to 10,152 P.S.I. operating pressure.

At RK Machinery operator safety is our number one concern.

Self-locking table design eliminates lateral movement.
Standard feature on all H Frame Press models.

The more pressure that you apply to the workpiece, the more rigid the table and frame become.

Open sides to facilitate work on long pieces.

Flat ram nose can be easily changed to allow the user to adapt the press to a specific job.

The head consists of three 2.000” hardened pins per leg. These pins are positioned into the leg and head then welded in place and ground even. When the press is painted they are not even visible.

Do the math
Tensile strength = AREA x PSI x No. of Pins.
3.14 x D² ÷ 4 x 100,000 lbs. Per SQ. IN. x 12 Pins = 3,768,000 lbs.
1,884 Tons.

Foot pedal-electric solenoid valve for hands-free operation, c/w electric control panel (optional).

Press Plate & V Blocks (Option)
TABLE & MATCHED PAIR OF V BlOCKS ARE PRECISION MACHINED.

H Frame press with full
powered 3 axis control.

Superior ease of use and workmanship sets it apart as the best product offering in its class.
